BMW E36 Convertible (318i, 320i, 323i, 325i, 328i & M3 )

BMW E36 Convertible

BMW E36 Headliner Installation Instructions
For Product #s: 336-4503 & 336-4504

To Order this product by Phone, Call (805) 921-0100 or (800) 222-9577, Monday to Friday, 8 am to 5 pm PST

The following information is supplied as a customer service guide only. World Upholstery & Trim recommends professional installation of all our products. No guarantees are granted with regards to the use of this guide.


E36 headliners are prone to failure in several different places. Replacing the entire headliner would require you to tackle different problematic areas. There are 3 kits available (sold separately from the headliner) than can take care of the most of these problems:

  • Bow repair kit (# 336-4507)
  • Side plastic panel kit (# 336-4505)
  • Side tension kit (# 336-4506)

Bow Repair Kit

If your headliner is coming down in the rear and will not stay clipped to the metal bows, the headliner bow repair kit (Part # 336-4507) is what you need. This stainless steel kit repairs the ends of the 3 long plastic clips sewn to and holding the headliner to the top frame. The headliner must be dropped at the end of each clip trimmed. Instructions are included with the kit.


Side Repair Kit

Another very common problem is the breaking of the tabs that hold the end of the strings on the back of the side panels. The answer is the Side Repair kit (Part # 336-4505). These 2 parts glue to the headliner fabric at the rear of the rear 1/4 glass. The tension strings run through 4 protrusions on the back of these parts so the strings must either be re-used or replaced. Re-installing the strings are not for the faint of heart.


Tension String Repair Kit

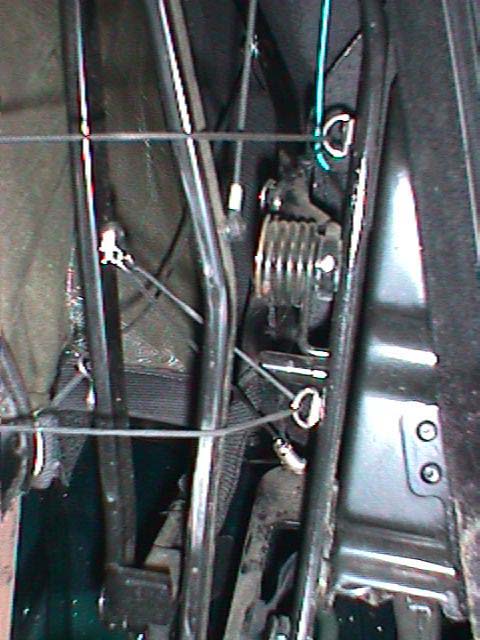

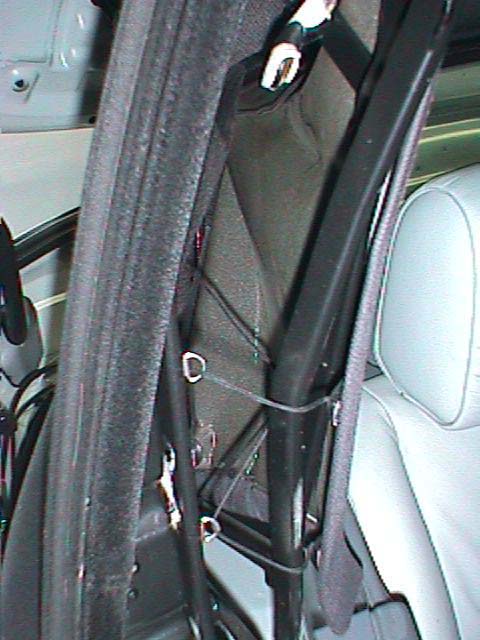

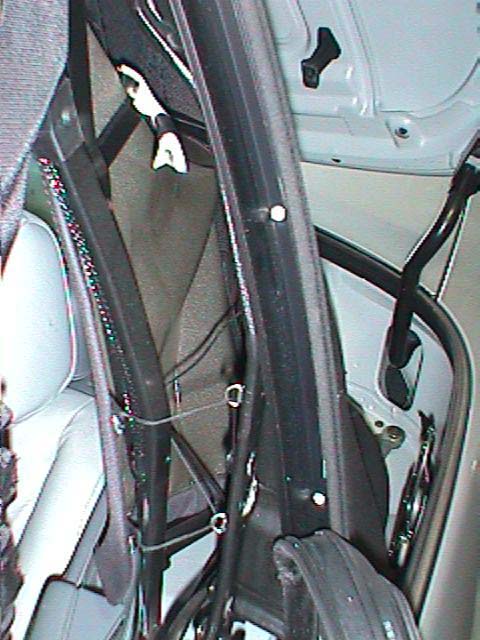

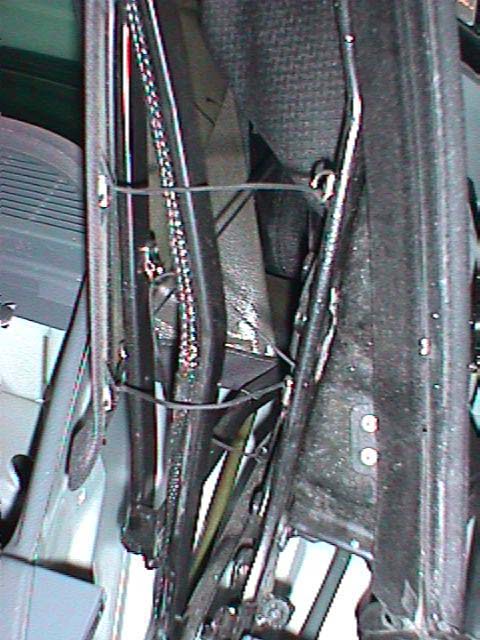

Even if your plastic side panels are fine, you may need the last headliner repair kit, the Tension Spring Repair Kit (# 336-4506). You normally need 2 kits, one for each side. Each kit includes a string, guides and screws as well as a spring. The routing of the string is critical to smooth operation. Replacement is not for the faint of heart. Photos below show strings with top in various positions.

Driver's Side

Passenger's Side
