Select Car to Show Available Products:

-

02 Series Sports Sedan (1966-1976)

Complete Kits Seat Kits Carpet Sets Headliners
Door Panels Rubber Seals Others

Despite BMW's still tentative hold on profitability, they launched the 2-door 1600 or 1600-2, later named 1602, in 1966 as the first in a new line of sports sedans (02 Series / E10). This move paid off allowing them to establish a foothold in the US and led to the addition of the now famous 2002 in 1968. More versions with different engines soon followed like the 1600 TI, 2002 TI, 2002 tii, 2002 turbo, 1802 and the entry-level 1502. A 3-door hatchback version (2002 Touring) was also released as well as cabriolet conversions from Baur. The line was replaced by the BMW 3-Series in 1976.


Seat Upholstery

World Upholstery & Trim offers front seat kits and rear seat kits for the 02 Series Sedans from 1966 to 1976. The seat remained the same from 1966 to 1973 but there were variations in the headrests. Headrests weren't introduced until 1969 and even then, the really early ones were slightly smaller than the ones used later. 1974 introduced a slight change in the seat and headrest design but the seat structure did not change much, in fact some 1974 headrests can be found in earlier seats as they are interchangeable. In 1975, the side post headrests were finally replaced by the more common bottom-post headrest along with a new seat design. The 2002 turbo had its own type of seats designed for racing.

Seat parts like the pads, frame, cables and other hardware are not included in the kit. Seat covers are pre-sewn and ready to be installed; installation will require removal of the old seat upholstery as well as possible fixing or replacement of internal seat parts like the seat pads. Replacement seat pads for most front seats are available except for pads for the 2002 turbo seats.



Front Seat Kit
10 Pleats per Seat
Side-Post or No Headrest
(1966 - 1973)

Front Seat Kit
7 Pleats per Seat
Side-Post Headrest
(1974 - 1974)

Front Seat Kit
6 Pleats per Seat
Bottom-Post Headrest
(1975 - 1976)

Call (805) 921-0100 or e-mail us so we can discuss the correct seat upholstery for your car!

Return to Top


Carpet Sets

World Upholstery & Trim offers interior carpet sets for most models of 02 Series sedans. The carpet did not change much except that they changed from cut and bound carpet to molded in the later years of the model line. The floor did not change significantly so the same cut and bound carpet pieces can replace the molded carpet. We offer both the "cut and bound" and molded version of the 02 Series carpet.

There are certain factors that affect the carpet set. Automatic transmission cars are slightly different from manual versions because of the pedals. Baur conversions will have slight changes in the side areas because the conversion added body reinforcements that affect the carpet. Touring cars had carpet in the storage area behind the rear seats and can be bought as a separate set from the interior set.

Interior Carpet Set
02 Series Sedan
(1966 - 1976)

Call (805) 921-0100 or e-mail us so we can find the correct carpet for your car!

Return to Top


Headliners

World Upholstery & Trim offers pre-sewn replacement headliners for most 02 Series sedan models. This does not include the hatchback and cabriolet versions. While there were many different 02 Series models, the chassis did not change and thus there were no significant changes for both the carpet and headliner. The only variations are whether the sedan has a sunroof or not. The original "snakeskin" textured vinyl is used to reproduce the headliner.

These replacement headliners are already cut and sewn to fit and ready for installation but headliner replacement as a whole is an arduous task so we still recommend the use of professional installers.

White Snakeskin Vinyl
E10 Headliner Material

Call (805) 921-0100 or e-mail us so we can find the correct headliner for your car!

Return to Top


Door Panels

World Upholstery & Trim offers door panel replacements for 02 Series sedans from 1966 to 1976 that includes both the board panel, the upholstery skin and the chrome strips. There were only 2 versions: an early version (1966-1973) and a late version (1974-1976). The original manufacturer still offers OEM door panels for the early version. These panels comes in only 3 colors (black, blue and brown) and all of them have a black header. The late version OEM panels are discontinued but we are able to reproduce it complete with heat-sealing and chrome strips.

These door panels are sold as is seen below. You will need to re-use or replace all other attachments as well as put the holes on the vinyl during installation. The board panel itself already has all the most commonly used holes. Door panel clips that attach the panel to the door are normally re-usable but are sold separately if needed. The same clips are used for all 02 Series model years.



OEM Door Panel
Product # 202-0051: Left
Product # 202-0052: Right
Early E10 Sedans
(1966 - 1973)

Repro Door Panel
Product # 202-0061: Left
Product # 202-0062: Right
Late E10 Sedans
(1974 - 1976)

Call (805) 921-0100 or e-mail us to order or for more information!

Return to Top


Rubber Seals

World Upholstery & Trim offers OEM rubber seals for the most commonly replaced rubber seals in 02 Series sedans. Most of the OEM rubber seals are still available since these cars are pretty popular. In fact we are also able to offer reproduction version of the more common rubber seals. It will not be the same rubber material used by the original manufacturer but it will fit and is much more budget friendly.

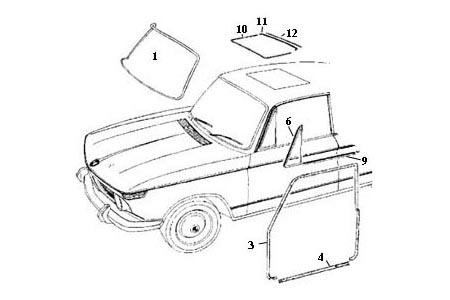

Front Seals

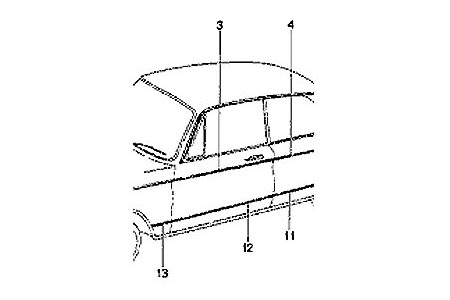

Side Seals

Rear Seals

Call (805) 921-0100 or e-mail us to find out if we have the rubber seal that you need!

Return to Top


Other Trim Parts

World Upholstery & Trim offers other various trim parts for the 02 Series Sedans including dash caps, the package/hat tray panel, the pedal pads and various other accessories. Most of these items we distribute for other manufacturers. We also offer sprayable dyes, coco and carpet floor mats and sheepskin seat covers.



Dash Cap
Product # 202-7603
(1966 - 1976)

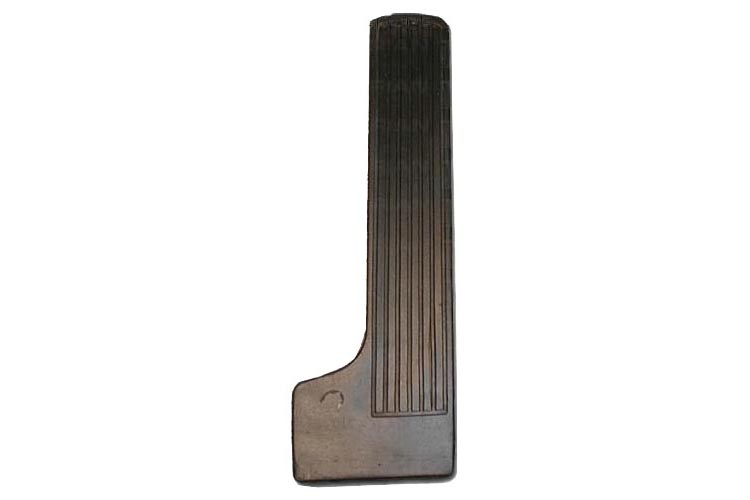

Accelerator Pedal Pad
Product # 202-3743
(1966 - 1976)

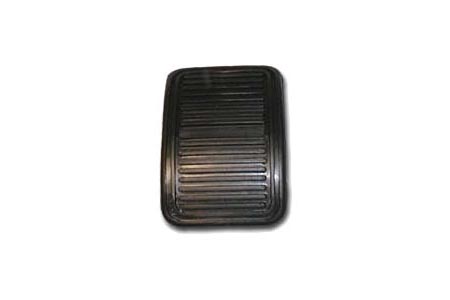

Brake/Clutch Pedal Pad
Product # 202-3745
(1966 - 1976)

Call (805) 921-0100 or e-mail us to find out if we have the parts that you need!

Return to Top
